Magwell USB Capture SDI

Magwell USB Capture SDI

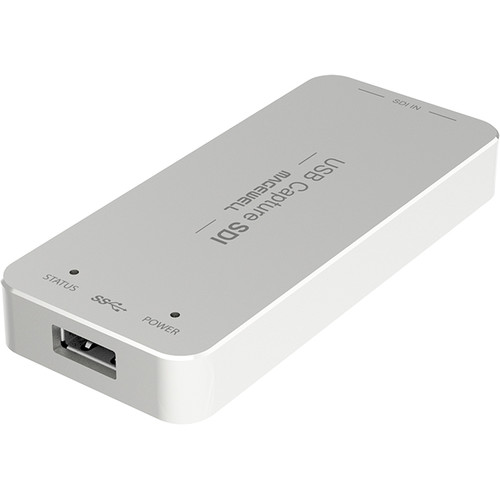

The Magewell USB Capture SDI Gen 2 is a slim and compact dongle that lets you easily import an SDI signal into your computer for recording or streaming. It provides a handy and efficient way of connecting cameras, decks, switchers, and other broadcast and surveillance equipment to your computer. Furthermore, it doesn't require any additional drivers to be installed, and thereby is compatible with various software and web-applications (see below) on Mac, Windows, Linux, and Chrome OS, and works by simple plug-and-play connection.


Supported OS
Windows 10, 8.1, 8, 7, 2012 (x86/x64), 2008 R2, 2008
Linux (Ubuntu 12.04-16.10, CentOS 7)
OS X 10.9-10.11
macOS 10.12
Chrome OS

Supported APIs
Wave API/DirectSound/WASAPI
OS X/macOS:
AV Foundation

1 x Mini Coax (MCX) port (supporting 3G/HD/SD-SDI signals via an included MCX to SDI cable)

USB 3.0 (compatible with USB 3.1 Gen 1, backwards-compatible with USB 2.0)

USB Standard
Meets the standards of UVC (USB video class) and UAC(USB audio class)

Supported Resolutions
Input/Output: Up to 2048 x 1080 (2K) at 60 Hz

Power Consumption
5 V max current: 0.5 A

Max power consumption: 2.5 W

Operating Temperature 32 to 122F (0 to 50C)

Storage Temperature 4- to 158F (-20 to 70C)

Relative Humidity 5 to 90% non-condensing

Dimensions 3.6 x 1.6 x 0.5" (9.2 x 4 x 1.2 cm)
