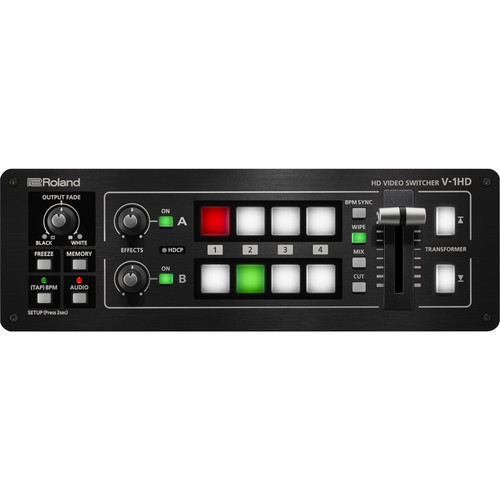

Roland V-1HD Portable 4 x HDMI Input Switcher
![Roland V-1HD Portable 4 x HDMI Input Switcher](/rentalsimages/blank-200x150.jpg)
$40.00/Day
$160.00/Week
$160.00/Week
Description
Roland's V-1HD 4 x HDMI Input Switcher is a portable solution for HD video production that accommodates up to four HD inputs. The inputs each have a frame buffer/TBC so that you don't need to Genlock your input sources together. You can control the switcher manually by using the built-in controls or connect it to a computer or iPad running optional software for electronic control. Select your working resolution and switch between your four input sources. Built into the switcher is a 12-channel audio mixer, which can de-embed and embed audio signals from HDMI.Specs
Video Processing 4:2:2 (Y/Pb/Pr), 8-bitInput / Output
Input
4 x HDMI Type A
1 x L/R pair RCA (audio)
1 x Stereo mini jack, mic (plug-in power supported)
Output
2 x HDMI (preview, program output)
1 x L/R RCA (audio)
1 x Stereo mini jack
Video Format
Input
1080p: 50/59.94
1080i: 50/59.94
720p: 50/59.94
Output
1080p: 50/59.94
1080i: 50/59.94
720p: 50/59.94
Audio Processing 48 kHz
24-bit
Max Audio Delay: 500 ms (each channel)
Input Level Audio: -10 dBu (maximum: +8 dBu)
MIC: -41 to -31 dBu (maximum:-1 dBu)
Input Impedance Audio: 15 kOhms
MIC: 10 kOhms
Output Level Audio: -10 dBu (maximum: +8 dBu)
Headphones: 72 mW + 72 mW (32 ohms)
Output Impedance Audio: 1 kOhms
Headphones: 10 ohms
Interface - Connectors 1 x MIDI input
1 x MIDI output/through
1 x USB B (remote control from PC)
Power Curent Draw: 1.5A
Power Consumption: 18 W
Dimensions 12.3 x 4.0 x 2.3" / 31.3 x 10.2 x 5.9 cm
Weight 2.6 lb / 1.2 kg
