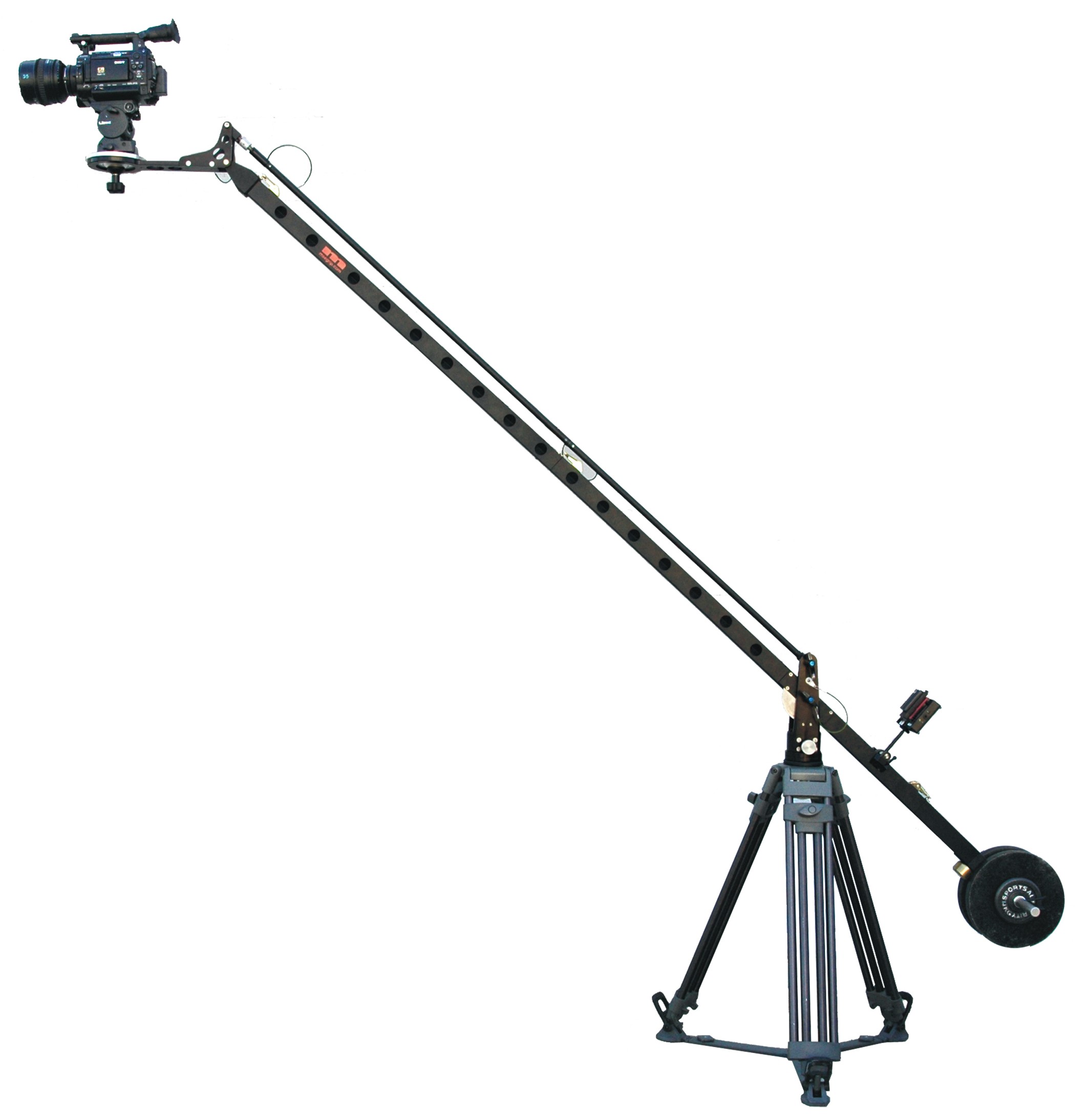

Intel-A-Jib
![Intel-A-Jib](/rentalsimages/blank-200x150.jpg)
$200.00/Day
$800.00/Week
$800.00/Week
Description
GENERAL SPECIFICATIONS
Min Reach 6' (1.83 Meters)
From center of fulcrum pivot point, to center of 7" Mitchell mount
Max Reach 10' (3.10 Meters)
From center of fulcrum pivot point, to center of 7" Mitchell mount
Max Camera Package Load Capacity 120lbs at 6" (54.43kg at 1.83m)
80lbs at 10' (36.29kg at 3.10m)
Overall Assembled Length 9'7" at 6' (2.96m at 1.83m)
13'8" at 10' (4.21m at 3.10m)
Weight at Full Extension (less counterbalance weight) 65lbs at 10' (28.48kg at 3.10m)
Counterbalance Weight to Load Ratio 1.8:1 at 6' (1.83m)
3.0:1 at 10' (3.10m)
Camera Mount Options Over/Under 7" Mitchell (flat-base)
Intel-A-Jib Mounting Requirements Dolly, tripod, or other, with 7" Mitchell mount
(rated for weight of jib, camera package and counterbalance weight)
Set Up Time Under two minutes
Construction Machined/extruded aluminum and stainless steel
Finish Black anodize and powder coat
Arm Extrusion Design One Piece X-Box Extrusion for superior
anti-deflection and anti-torsion properties
Arm Section Connectors V-Lock Connector for fast secure assembly
Arm Sections Included One main arm for 6' reach, one extension arm for 10' reach
Counterweight Style Standard 1" barbell
Additional Distinctive Features Camera platform level adjustment, fine tuning weight,
high visibility dual bubble levels, tilt and pan brake,
