Full Xeen Prime Package

Full Xeen Prime Package
$300.00/Day
$1200.00/Week

Description

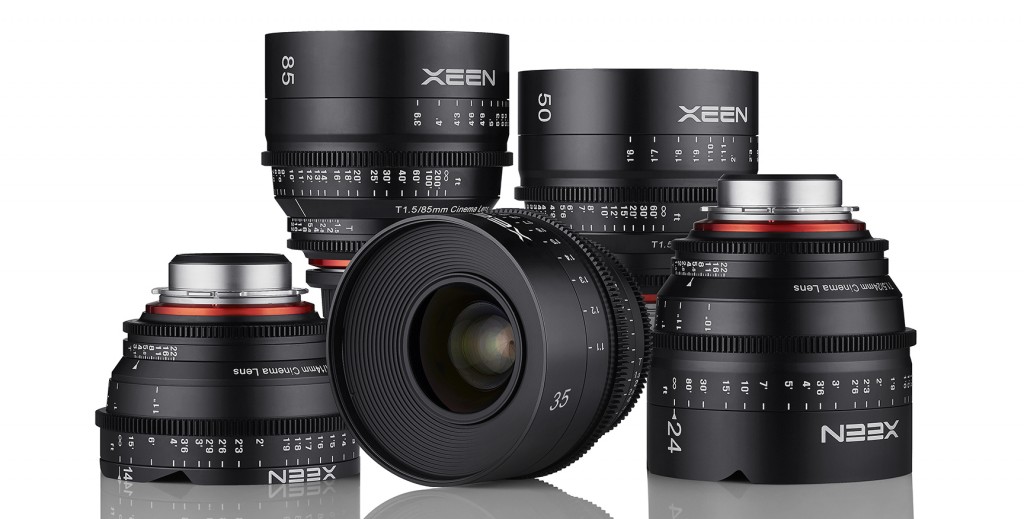

Xeen Cinema Lenses includes the 14, 24, 35, 50, 85, and 135mm lenses. This provides you with a full, color-matched set of lenses that cover full frame and are fitted with PL-mounts. The lenses feature an internal focus design, which means that the front of the lens doesn't rotate as you change focus, and the lens maintains a constant volume. Dual-sided focus marks make it easier on your camera assistant working on either side of the camera, and the 200 of focus barrel rotation provides ample real estate for precision marking.

Each lens incorporates built-in, cinema-style focus and iris gears that share common positions, making for fast lens changes. The 24, 35, 50, and 85mm lenses feature a maximum aperture of T1.5 and an 11-bladed iris. The 14mm features a maximum aperture of T3.1 and has a 9-bladed iris, while the 135mm is still fast at T2.2 and incorporates an 11-bladed iris. As these are cinema lenses, the iris is designed to be clickless, allowing smooth aperture pulls.

Specs

Rokinon Xeen 14mm T3.1 Lens for PL Mount
Focal Length 14mm
Lens Mount ARRI PL
Format Full Frame
Image Circle Not Specified by Manufacturer
Maximum T-Stop T3.1
Minimum T-Stop Not Specified by Manufacturer
Diagonal Angle of View Super35: 98.2
Full Frame: 115.7
Minimum Focus Distance from Image Plane 11.0" / 27.9 cm
Optical Design Not Specified by Manufacturer
Iris Blades 9
Front Diameter Not Specified by Manufacturer
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Focus Rotation 200
Iris Rotation 300
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread Not Specified by Manufacturer
Dimensions (W x H) 4.63 x 4.63" / 117.6 x 117.6 mm
Length 3.2" / 80.3 mm
Weight 41.3 oz / 1.17 kg
Packaging Info
Box Dimensions (LxWxH) 10.2 x 8.0 x 7.6"
Rokinon Xeen 24mm T1.5 Lens for PL Mount
Focal Length 24mm
Lens Mount ARRI PL
Format Full Frame
Image Circle Not Specified by Manufacturer
Maximum T-Stop T1.5
Minimum T-Stop T22
Diagonal Angle of View Super35: 61.2
Full Frame: 84.1
Minimum Focus Distance from Image Plane 10" / 25 cm
Optical Design 13 Elements in 12 Groups
Iris Blades 11
Front Diameter Not Specified by Manufacturer
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Focus Rotation 200
Iris Rotation 40
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread Not Specified by Manufacturer
Dimensions (W x H) 4.63 x 4.63" / 117.6 x 117.6 mm
Length 4.5" / 113.7 mm
Weight 41.6 oz / 1.18 kg
Packaging Info
Box Dimensions (LxWxH) 10.4 x 7.8 x 7.6"
Rokinon Xeen 35mm T1.5 Lens for PL Mount
Focal Length 35mm
Lens Mount ARRI PL
Format Full Frame
Image Circle Not Specified by Manufacturer
Maximum T-Stop T1.5
Minimum T-Stop Not Specified by Manufacturer
Diagonal Angle of View Super35: 46.9
Full Frame: 63.1
Minimum Focus Distance from Image Plane 13.0" / 33.0 cm
Optical Design Not Specified by Manufacturer
Iris Blades 11
Front Diameter Not Specified by Manufacturer
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Focus Rotation 200
Iris Rotation 300
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread Not Specified by Manufacturer
Dimensions (W x H) 4.63 x 4.63" / 117.6 x 117.6 mm
Length 4.5" / 113.7 mm
Weight 48.0 oz / 1.36 kg
Packaging Info
Box Dimensions (LxWxH) 10.3 x 7.8 x 7.8"
Rokinon Xeen 50mm T1.5 Lens for PL Mount
Focal Length 50mm
Lens Mount ARRI PL
Format Full Frame
Image Circle Not Specified by Manufacturer
Maximum T-Stop T1.5
Minimum T-Stop T22
Diagonal Angle of View Super35: 31.2
Minimum Focus Distance from Image Plane 1.5' / 0.45 m
Optical Design 9 Elements in 6 Groups
Iris Blades 11
Front Diameter Not Specified by Manufacturer
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread 1/4"-20
Dimensions (W x H) 4.63 x 4.63" / 117.6 x 117.6 mm
Length 4.5" / 113.7 mm
Weight 40.9 oz / 1.16 kg
Packaging Info
Box Dimensions (LxWxH) 10.3 x 7.8 x 7.7"
Rokinon Xeen 85mm T1.5 Lens for PL Mount
Focal Length 85mm
Lens Mount ARRI PL
Format Full Frame
Image Circle Not Specified by Manufacturer
Maximum T-Stop T1.5
Minimum T-Stop T22
Diagonal Angle of View Super35: 19
Full Frame: 28.4
Minimum Focus Distance from Image Plane 3.6' / 1.1 m
Optical Design 9 Elements in 7 Groups
Iris Blades 11
Front Diameter Not Specified by Manufacturer
Filter Thread Not Specified by Manufacturer
Focus Scales Not Specified by Manufacturer
Electronic Communication Not Specified by Manufacturer
Tripod Mounting Thread 1/4"-20
Dimensions (W x H) 4.63 x 4.63" / 117.6 x 117.6 mm
Length 4.5" / 113.7 mm
Weight 43.9 oz / 1.25 kg
